Robot Wiring Diagrams

Robot Wiring Diagrams#

Quarterback V3#

  • stub

Quarterback V2#

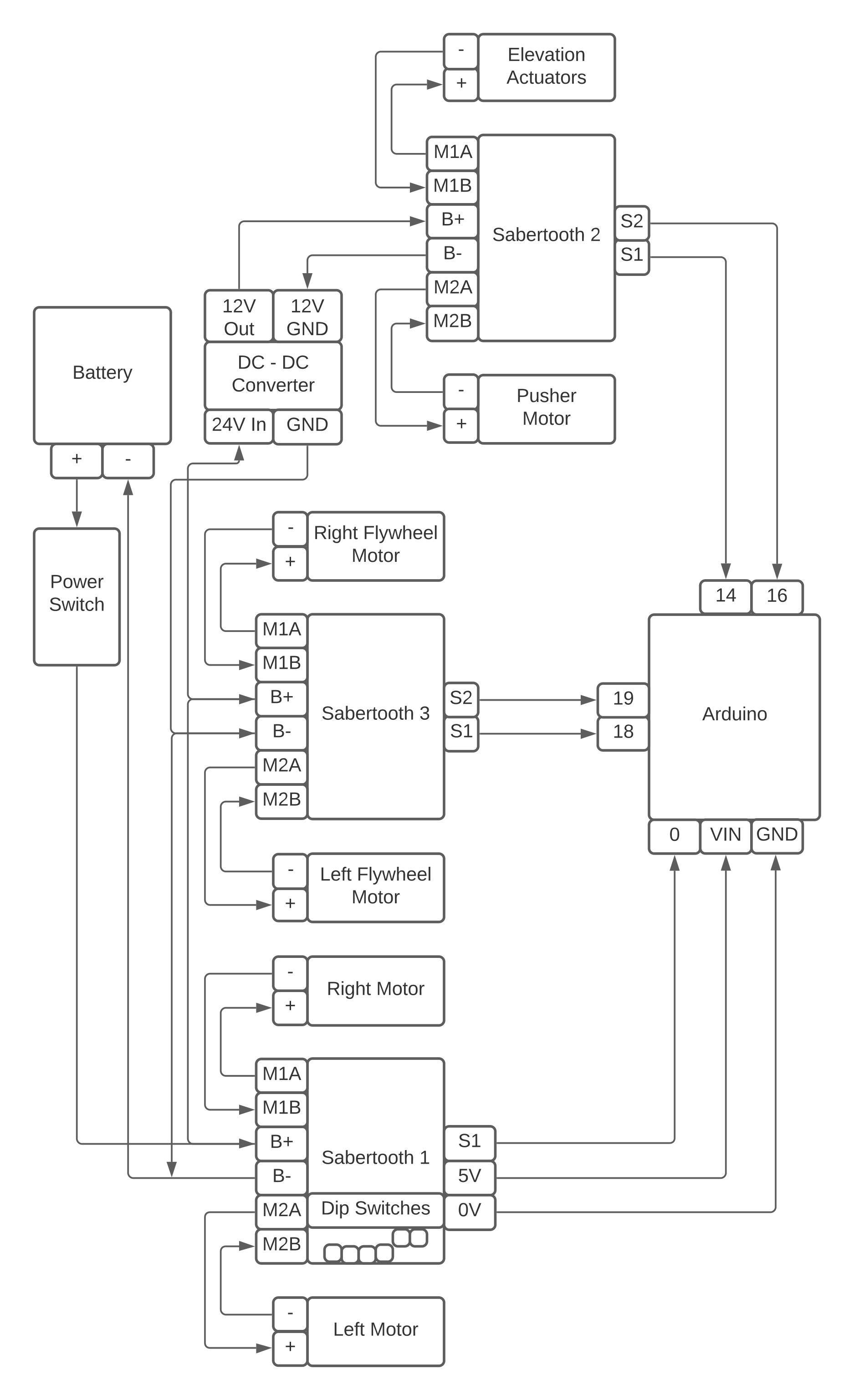

Quarterback Wiring Diagram

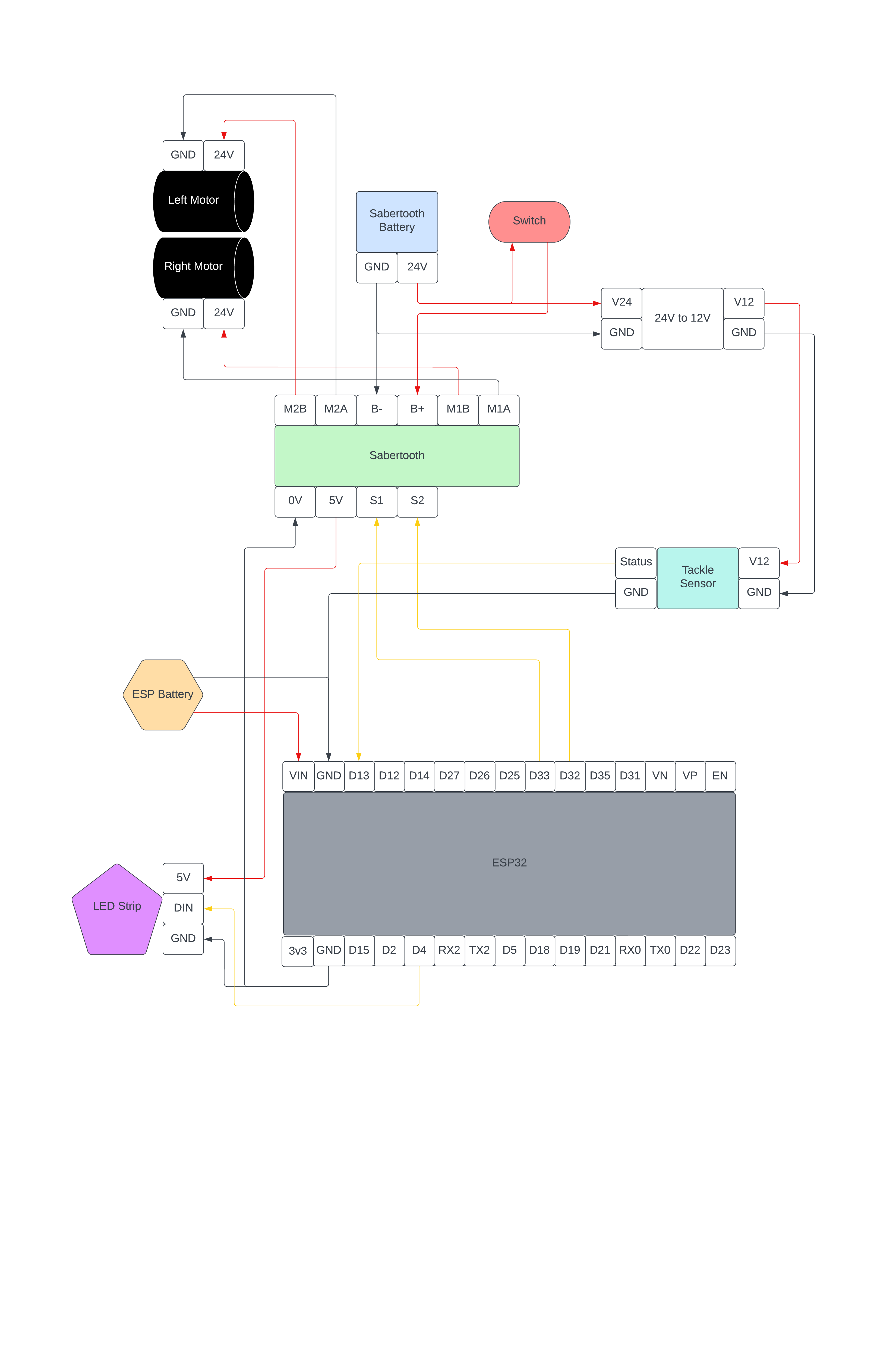

Reciever V2#

wd_reciever_v2

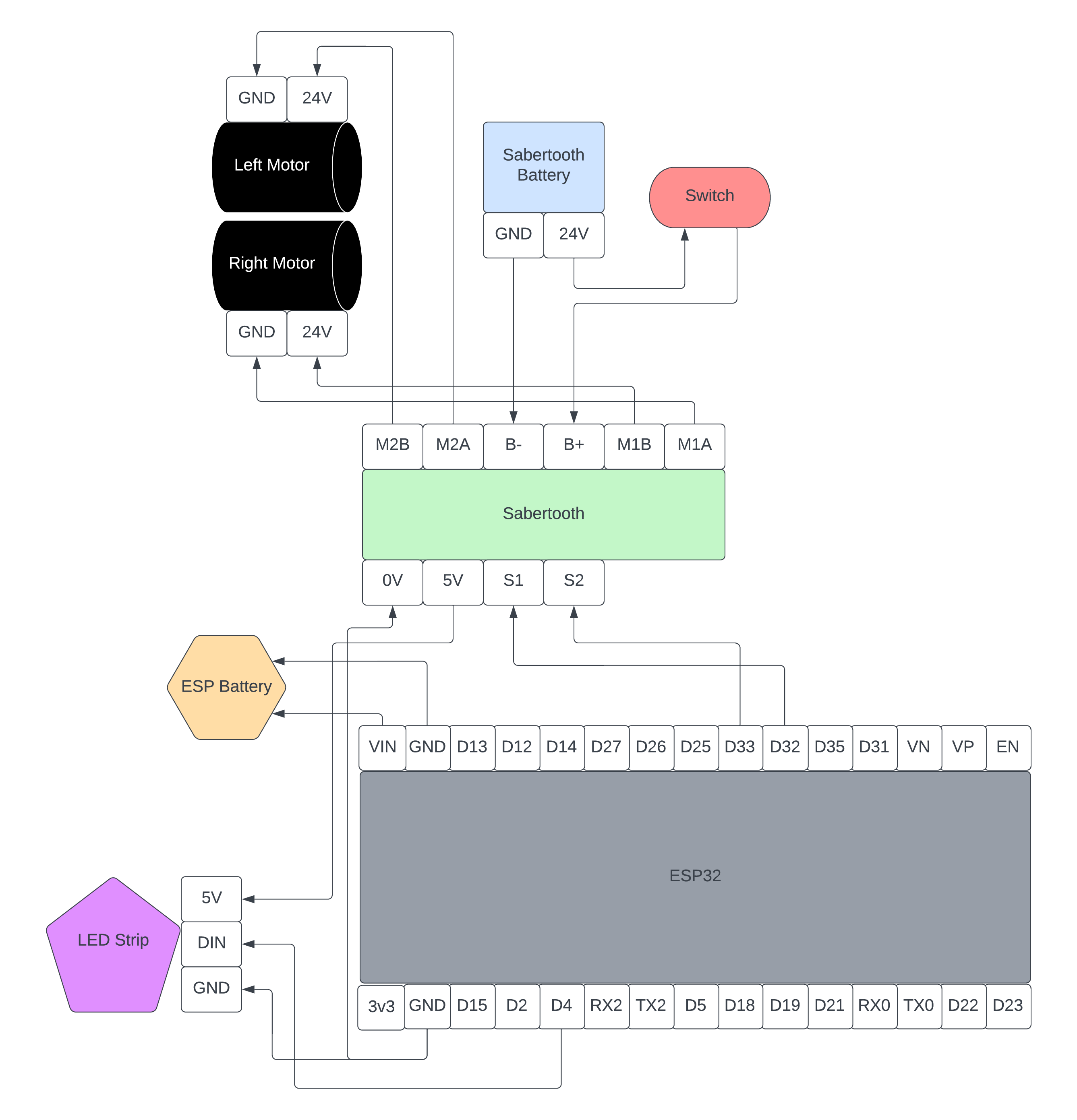

Lineman V3#

wd_lineman_v3

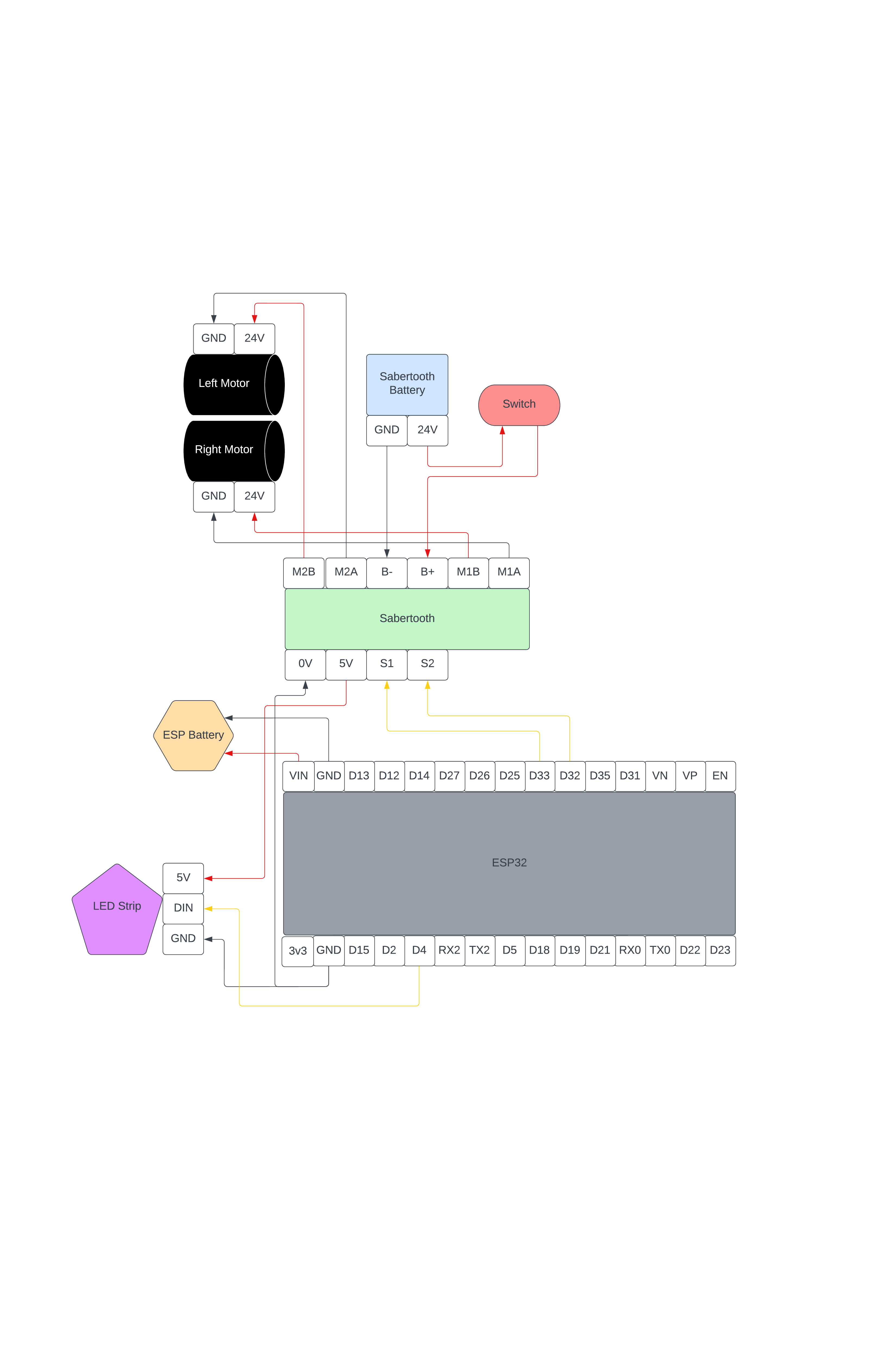

Lineman V2#

lineman_v2

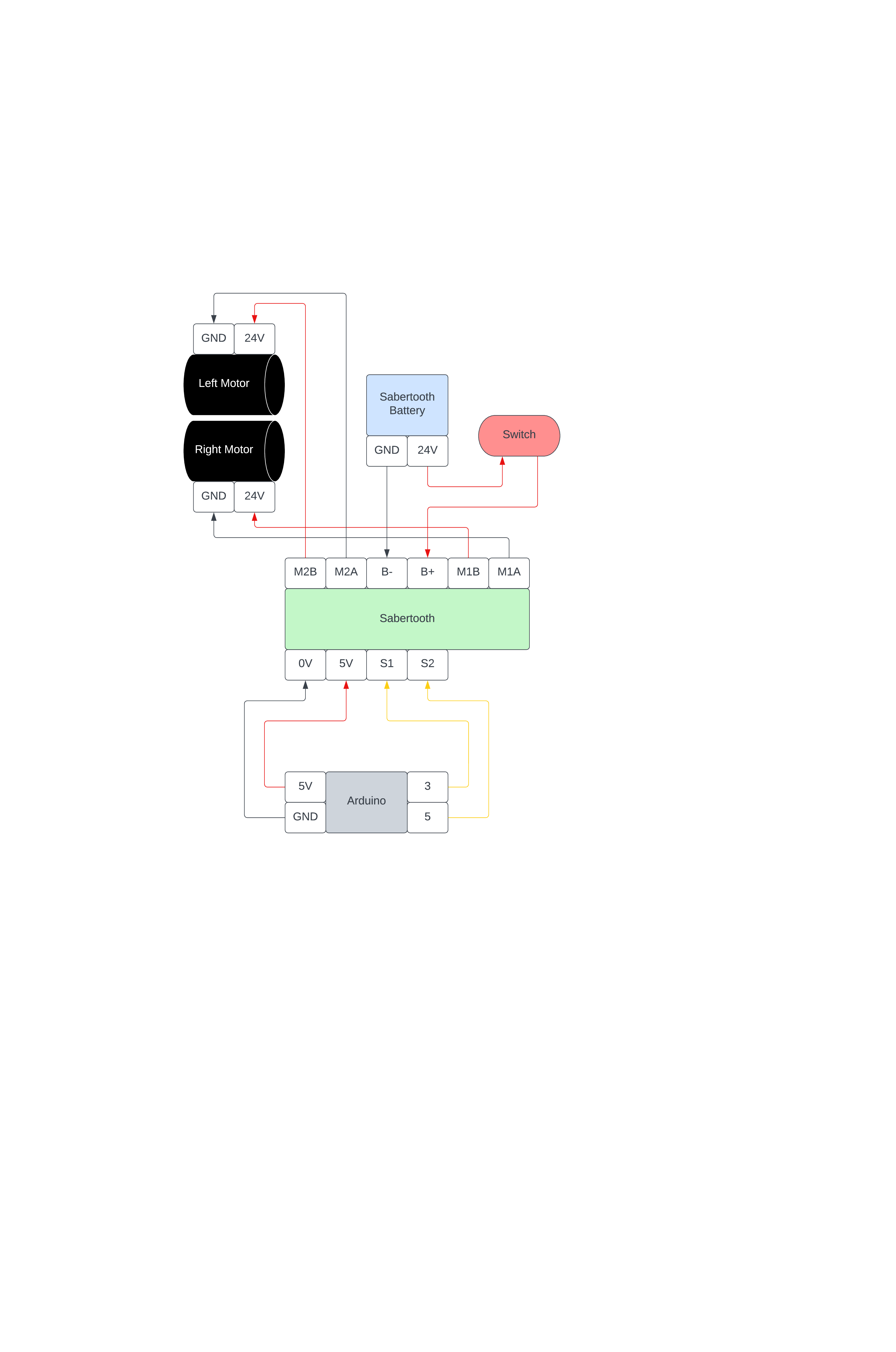

Lineman V1#

wd_lineman_v1

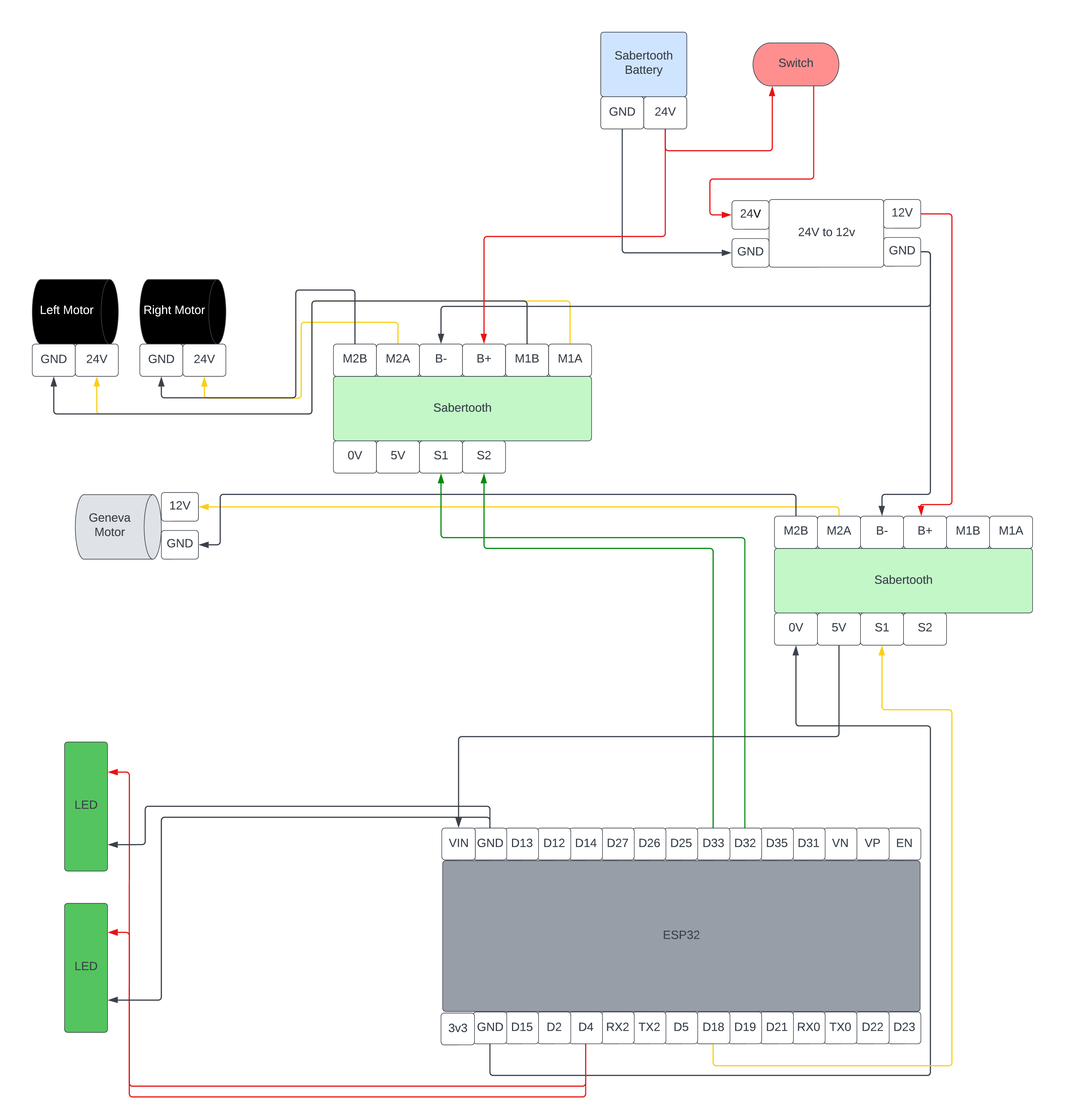

Kicker#

wd_kicker

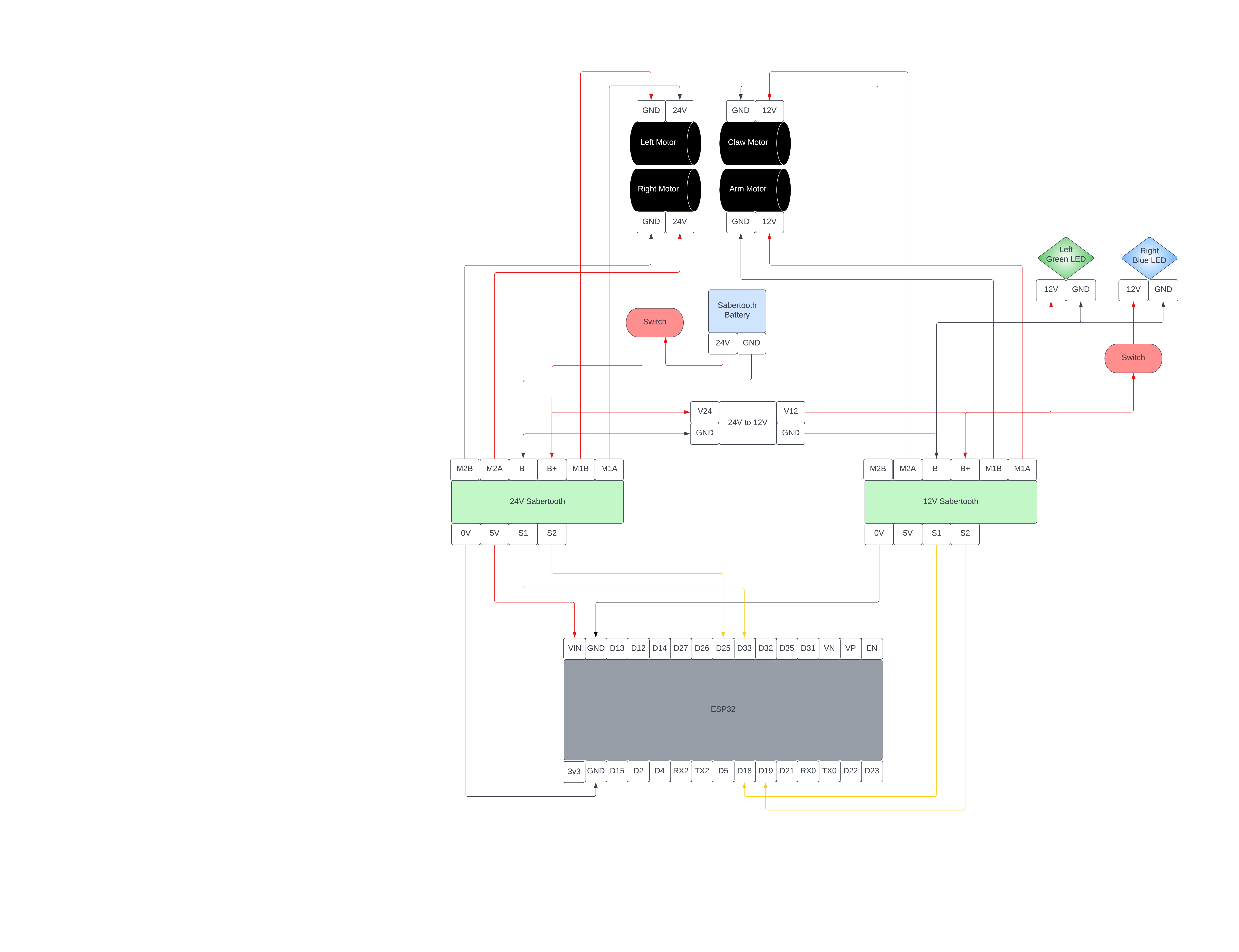

Center V1#

wd_center_v1
